L SeriesHydraulic Servo Cylinder
3000 PSI | Bore Sizes: 1½” to 6″ | Large Size
Specifications
Specification Overview
| Heavy Duty | NFPA Hydraulic |
|---|---|
| Bore Sizes | from 1½”-6” |
Material Overview
| Material Breakdown | STANDARD |
|---|---|
| Head & cap | Machined Steel |
| Flange | Machined Steel |
| Barrel | Seamless Steel Tubing Honed ID *Optional Chrome Plating available |
| Barrel Seals | Nitrile O-Ring |
| Piston | Aluminum 6061-T6 |
| Piston rod | Steel SAE 1045 |
| Gland | SAE 660 Bronze |
| Tie Rod | Stress-proof Steel |
Highlights
Design & Materials
Click on the (+) Icons to see more details.
Linear Displacement Transducer
Piston Packing | Hi-load BZ-PTFE & Nitrile energizer
Piston Lock | Spring Pin

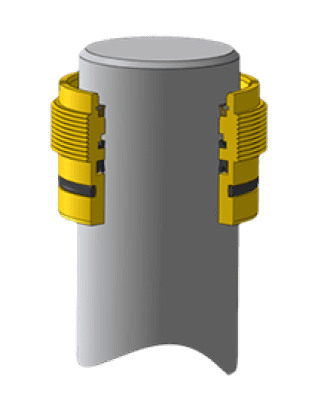

Gland Seal Configuration
Triple Seal Gland Standard
Gland Bushing: Cartridge type, no special tools required for removal
Buffer Seal: Protects primary seal from pressure spikes. PTFE for low friction and long service life.
Primary Seal: Heavy Duty Polyurethane “U”-cup for excellent seal ability and long service life.
Encased Rod Wiper: Rugged wiper deflects contamination away for the rod seals for long service.
L Series Applications
Industries trust us to provide state-of-the-art actuation and automation solutions in the following sectors.
Oil and Gas
Empowering oil and gas operations with advanced valve automation, ensuring efficient flow control for upstream and downstream applications.
Chemical Processing
Maximizing chemical processing efficiency with cutting-edge automation and precision control technologies.
Mining & Processing
Boosting mineral processing productivity with innovative automation and control systems.
Water Treatment
Streamlining water treatment processes with advanced valve automation, such as regulating flow rates for precise flow control.
Power Generation
Enhancing power generation reliability through state-of-the-art valve automation, ensuring seamless operation of turbine control valves for optimized energy output.
Manufacturing
Revolutionizing manufacturing efficiency with precise actuation automation by optimizing the operation of advanced operations from aviation testing systems to industrial milling process control.
Datasheets & Videos
L Series Servo Cylinder. Our servo actuators pass the aerospace industry’s rigorous 24/7 high-cycle testing with flying colours.
